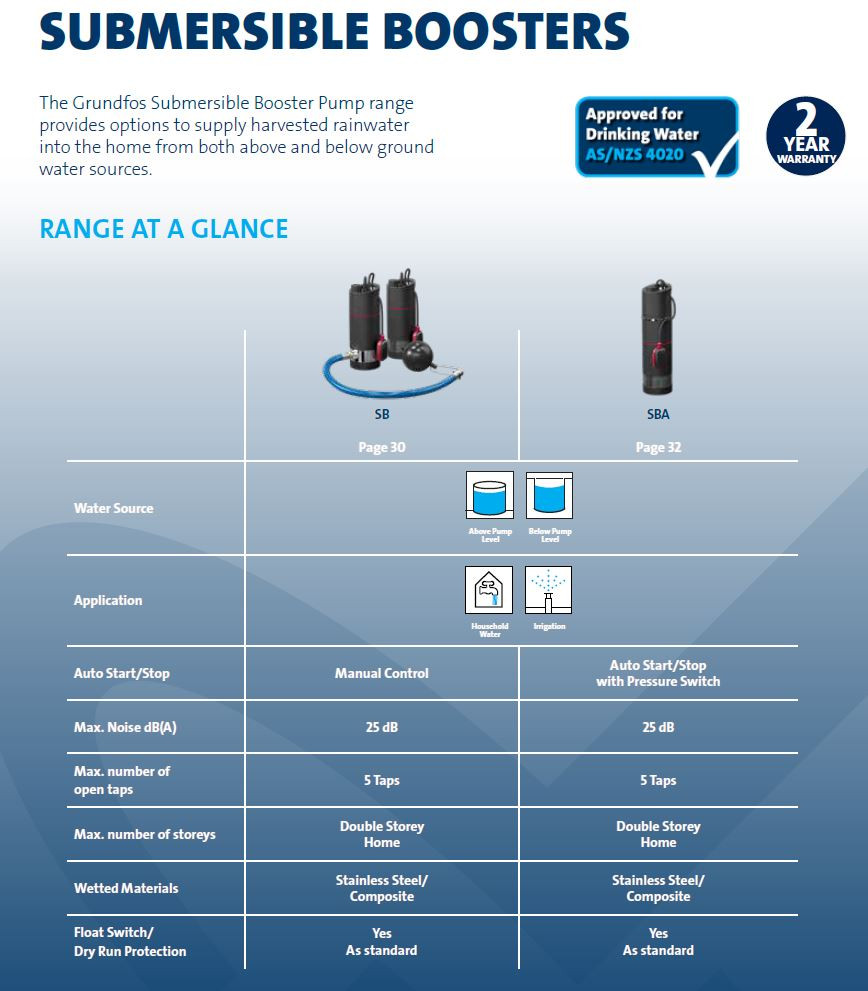

Grundfos Pump SBA 3-45 A - Submersible Pump with float
Grundfos SB 3-45 A is a submersible pump designed for the pumping of clean water for domestic and rainwater applications. It is silent (25 dB max - comparable to a person whispering) when submerged and therefore a noiseless alternative to surface-mounted pumps. The pump is built from high quality composite and stainless steel materials that are resistant to corrosion.
The SB 3-45 A is equipped with a 13.7 m supply cable, and the maximum installation depth is 10 m below the water level, with a liquid temperature ranging from 0 °C to 40 °C.
The SB 3-45 A is ideal for operation in a well or ground tanks, as it easily prevents solid particles from entering the pump. The maximum particle size is 1 mm.
The single-phase model is effectively protected against any accidental overload by built-in thermal protection.
The pump has built-in thermal protection, which immediately stops the pump if it overheats. Having cooled down, the pump automatically restarts when it reaches a normal temperature.
| CONTROLS: | ||
| Float switch (Yes/No): | Y | |
| LIQUID: | ||
| Pumped liquid: | Water | |
| Liquid temperature range: | 0 .. 40 °C | |
| Selected liquid temperature: | 20 °C | |
| Density: | 998.2 kg/m³ | |
| TECHNICAL: | ||
| Rated flow: | 2.83 m³/h | |
| Rated head: | 30 m | |
| Max. Particle: | 1 mm | |
| Approvals: | CE | |
| Curve tolerance: | ISO9906:2012 3B | |
| Return valve: | NO | |
| Rated speed: | 3400 rpm | |
| MATERIALS: | ||
| Pump housing: | Composite | |
| PP - GF30 |
| Impeller: | Composite | |
| PPO-20GF | ||
| INSTALLATION: | ||
| Range of ambient temperature: | -10 .. 50 °C | |
| Type of inlet connection: | STRAINER | |
| Pump outlet: | G 1" | |
| Pressure rating for connection: | PN 6 | |
| Maximum installation depth: | 10 m | |
| ELECTRICAL DATA: | ||
| Power input P1: | 0.92 kW | |
| Rated power - P2: | 0.75 kW | |
| Mains frequency: | 60 Hz | |
| Rated voltage: | 1 x 220-230 V | |
| Rated current: | 4.2 A | |
| Starting current: | 26 A | |
| Cos phi: | 0.944 | |
| Rated speed: | 3400 rpm | |
| Capacitor size - run: | 30 µF/250 V | |
| Enclosure class (IEC 34-5): | IP68 | |
| Insulation class (IEC 85): | F | |
| Built-in motor protection: | YES | |
| Length of cable: | 13.7 m | |
| Cable type: | H07RN-F 3G1 | |
| Type of cable plug: | No plug | |
| OTHERS: | ||
| Net weight: | 9.27 kg | |
| Gross weight: | 10.2 kg | |
| Shipping volume: | 0.021 m³ |
